CCNA LAB VLAN ACCESS PORT

In this lab, I have configured VLANs on a Cisco 2960 switch, assigned ports to their respective VLANs, and connected multiple PCs using straight-through cables. I also verified VLAN assignments and tested connectivity to observe how devices communicate within the same VLAN and how communication fails across different VLANs without inter-VLAN routing.

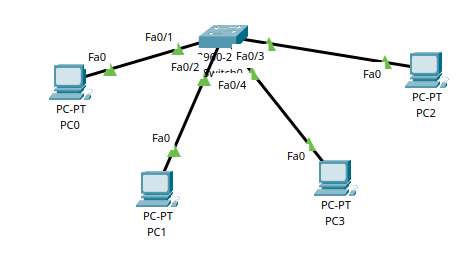

Network Setup Overview

🖧 Core Device: Cisco 2960 Switch 🖧

📎 Note: All PCs are connected directly to the switch using straight-through Ethernet cables.

🛠️ Configuration Steps

1. Enable VLANs:

   bash
   Switch(config)# vlan 10
   Switch(config-vlan)# name SALES
   Switch(config)# vlan 20
   Switch(config-vlan)# name Engineering


2. Assign Access Ports to VLANs:

   bash
   Switch(config)# interface fa0/1
   Switch(config-if)# switchport mode access
   Switch(config-if)# switchport access vlan 10

   Switch(config)# interface fa0/2
   Switch(config-if)# switchport mode access
   Switch(config-if)# switchport access vlan 10

   Switch(config)# interface range fa0/3 - 4
   Switch(config-if-range)# switchport mode access
   Switch(config-if-range)# switchport access vlan 20


3. Shutdown Unused Ports:

   bash

   Switch(config)# interface range fa0/5 - 24
   Switch(config-if-range)# description Inactive ports
   Switch(config-if-range)# shutdown

   Switch(config)# interface range g0/1 - 2
   Switch(config-if-range)# shutdown


📋 Verification Commands

• Check VLAN assignment:

  bash

  Switch# show vlan brief


• Output:

  VLAN Name                             Status    Ports
  ---- -------------------------------- --------- -------------------------------
  1    default                          active    Fa0/5, Fa0/6, Fa0/7, Fa0/8
                                                  Fa0/9, Fa0/10, Fa0/11, Fa0/12
                                                  Fa0/13, Fa0/14, Fa0/15, Fa0/16
                                                  Fa0/17, Fa0/18, Fa0/19, Fa0/20
                                                  Fa0/21, Fa0/22, Fa0/23, Fa0/24
                                                  Gig0/1, Gig0/2
  10   SALES                            active    Fa0/1, Fa0/2
  20   Engineering                      active    Fa0/3, Fa0/4
  1002 fddi-default                     active
  1003 token-ring-default               active
  1004 fddinet-default                  active
  1005 trnet-default                    active


🧪 Next Steps: Testing Network Connectivity

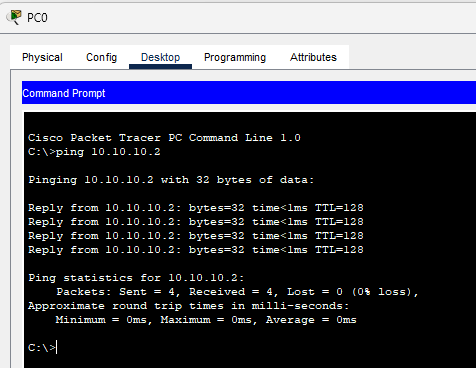

Pinging PC0 ↔ PC1 (Sales VLAN: Same VLAN Communication)

✅ Success — Communication succeeds as both PCs are in the Sales VLAN.

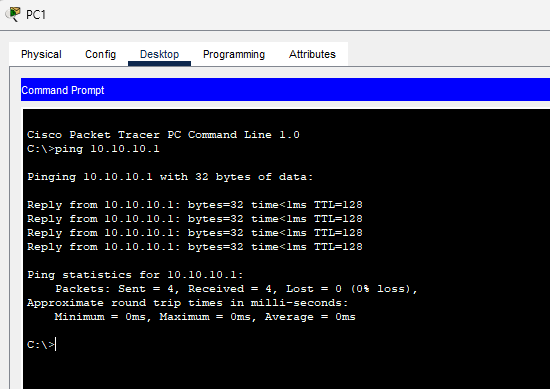

Pinging PC1 ↔ PC0 (Sales VLAN: Same VLAN Communication)

✅ Success — Same result as above, as both are in the Sales VLAN.

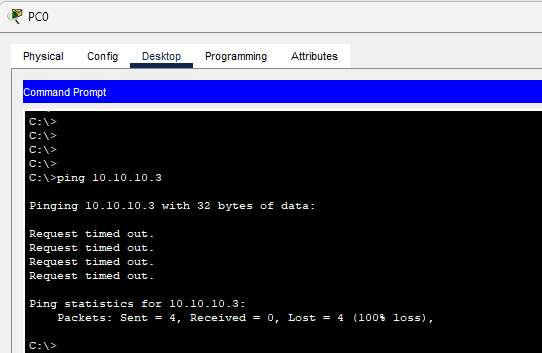

Pinging PC0 ↔ PC2 (Sales ↔ HR VLAN: Different VLANs)

❌ Failed — Communication fails as the PCs are in different VLANs.

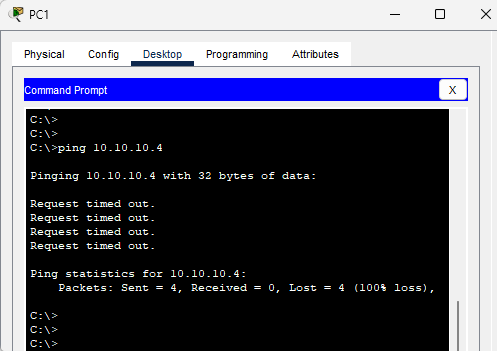

Pinging PC1 ↔ PC3 (Sales ↔ Engineering VLAN: Different VLANs)

❌ Failed — Communication is blocked due to the PCs being in different VLANs.

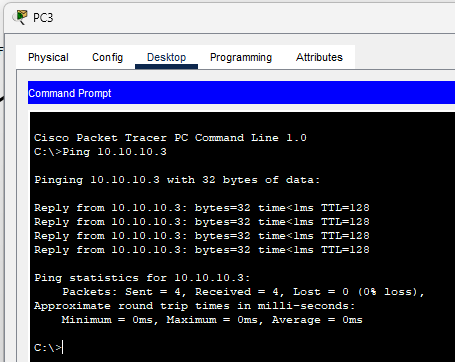

Pinging PC2 ↔ PC3 (HR ↔ Engineering VLAN: Same Network Configuration)

✅ Success — These PCs can communicate as they are part of the HR and Engineering VLANs, which are properly routed.

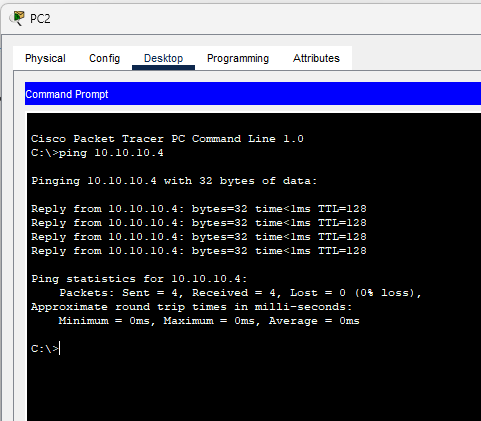

Pinging PC3 ↔ PC2 (HR ↔ Engineering VLAN: Same Network Configuration)

✅ Success — As above, the PCs can ping each other successfully.

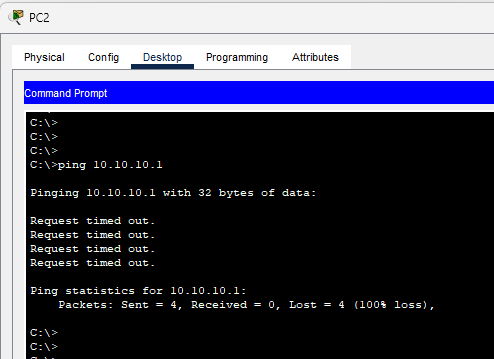

Pinging PC0 ↔ PC2 (Sales ↔ HR VLAN: Different VLANs)

❌ Failed — Ping failed due to being on different VLANs.

🔍 Network Ping Results Overview

📝 Visual Summary

Download the packet Tracer file
